Toughbook 55

Modular semi ruggedized
Windows 10 Pro Notebook
with 14" HD Display

Currently the safest
Windows device on the market

Model Information
Technical data
Downloads
Request Configuration
Accesories

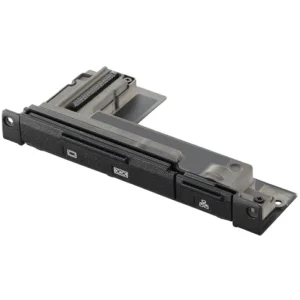

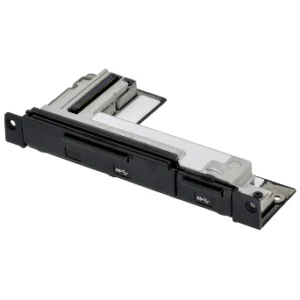

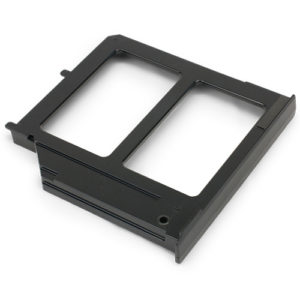

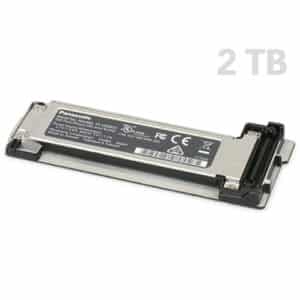

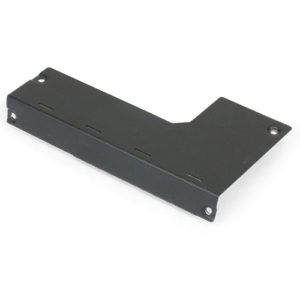

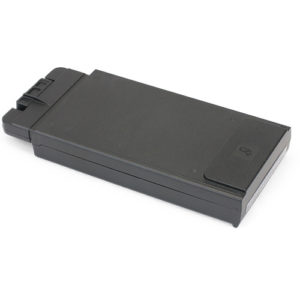

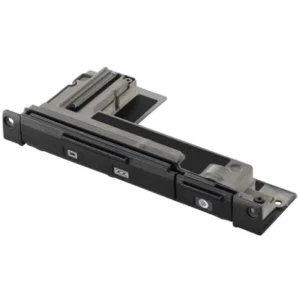

PWA Toughbook 55 modules

Modular design

The Panasonic TOUGHBOOK 55 breaks new ground with its innovative modular expansion packs, offering unmatched flexibility in even the most demanding and unpredictable environments.

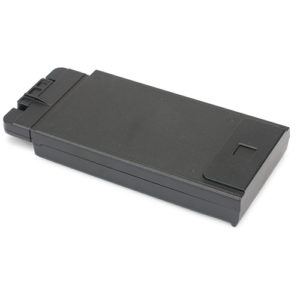

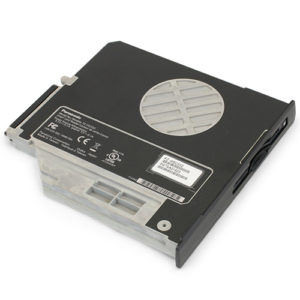

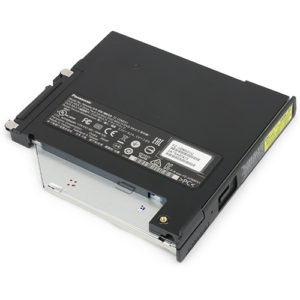

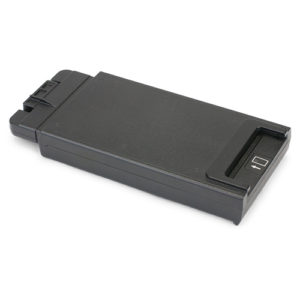

I/O, optical drives, card readers, and even discrete graphics expansion modules can be upgraded by the user. The memory and keyboard can also be updated by the user.

Flexibility

The TOUGHBOOK 55 takes legendary ruggedness and focus on professional applications to a new level:
Thanks to the flexible modules, it grows with your requirements.
Sascha Pfannmüller, p.p. Head of Strategy

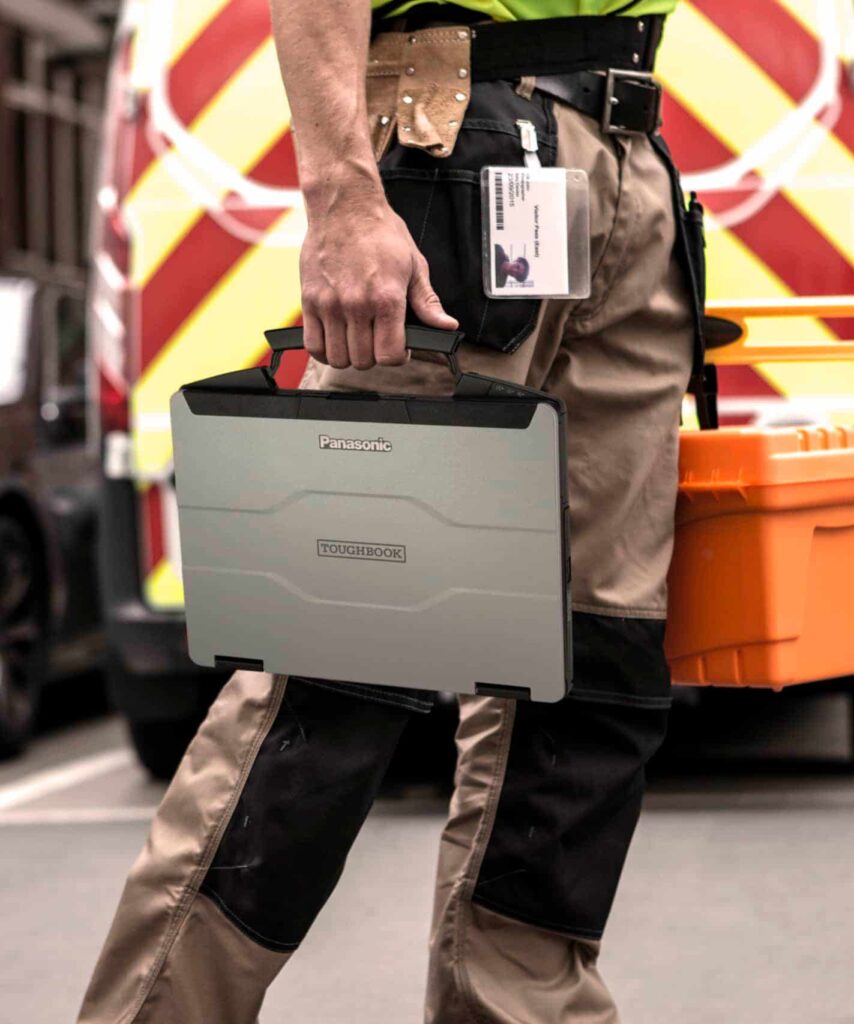

Panasonic TOUGHBOOK 55 Field Service

Mobile productivity
for the whole day

With the TOUGHBOOK 55, you can work all day on battery power. Even long outdoor use without an easy way to recharge is no problem.

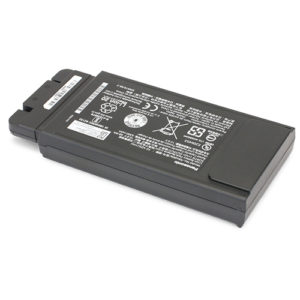

The TOUGHBOOK 55 has the longest battery life of all Panasonic TOUGHBOOKs introduced so far. In addition, an optional second battery can be hot-swapped without turning off the unit. At the same time, the TOUGHBOOK 55 is the thinnest and lightest device in its class.

Get ready for awesome

TOUGHBOOK 55

Resolution

14" HD (768p), Full-HD (1080p) or Full-HD touch screen.

Connectivity

Intel Wi-Fi 6 AX201, Bluetooth 5.1, optional 4G LTE with eSIM support.

Flexibility

2 expansion slots and TOUGHBOOK module bay.

Endurance

Up to 19 hours battery life with standard battery (optional up to 38).

Industry leading performance

The TOUGHBOOK 55 uses the latest 11th generation Intel Core i5 processors and Intel vPro including Intel® Hardware Shield.

It is the first notebook to use tetra-array microphones for unparalleled accuracy in speech recognition. It’s also the first TOUGHBOOK with a USB Type-C port, HDMI 2.0 and Bluetooth 5.1. It also offers faster WLAN, improved speakers, more brightness and an optional backlit keyboard.

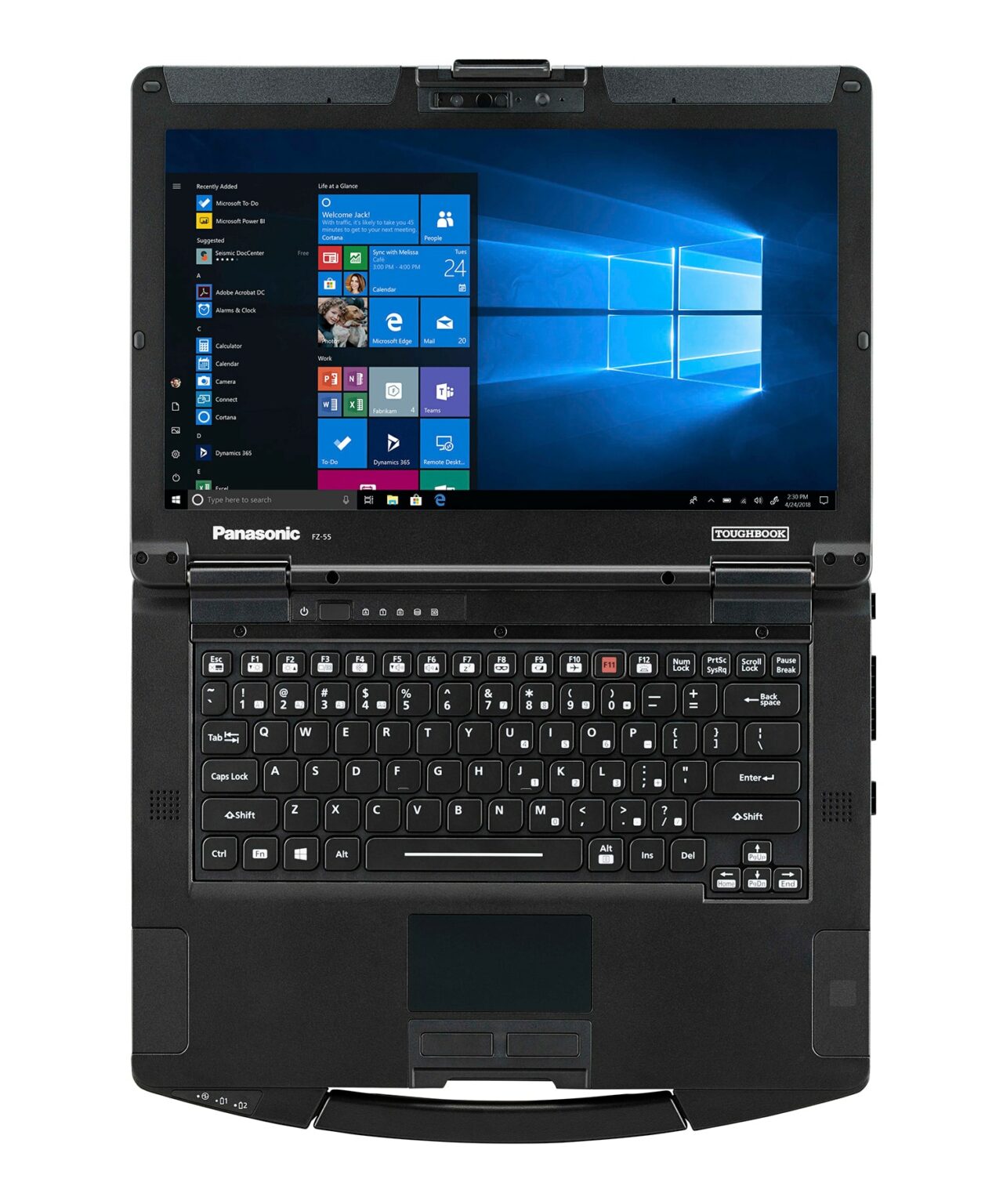

Panasonic TOUGHBOOK 55 Keyboard

TOUGHBOOK
55 HD

Version with 14" HD display
  • Intel® Core™ i5-1145G7 vPro™ processor
  • Windows 10 Pro
  • Lightweight, sleek design
    (approx. 2.08 kg and 32.8 mm)

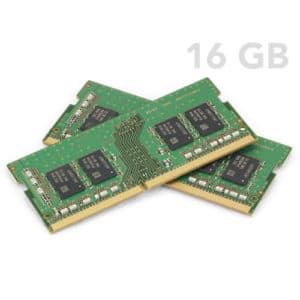

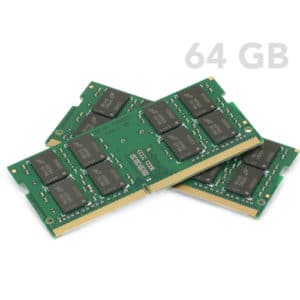

  • 8 GB RAM (max. 64 GB)

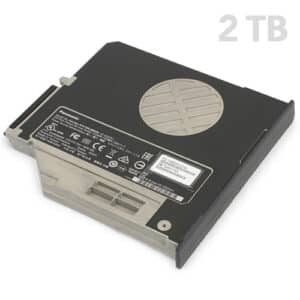

  • 512 GB SSD (max. 1 TB)
  • Standard with 2x USB 3.2,
    1x Thunderbolt 4, 1x HDMI,
    1x LAN and Micro SDCX

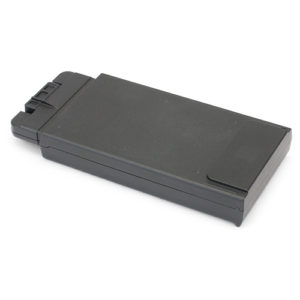

  • Expansion slot at the front
    and back
  • TOUGHBOOK universal bay
  • Long battery life of up to 18 hours
    (MobileMark 2014)
  • Special global positioning and
    4G LTE eSIM capable optional
  • Operation at -29 °C to +60 °C
  • Robust magnesium housing in
    honeycomb construction with
    carrying handle
  • Penetration protection against
    water and dust according to
    protection class IP53
  • Fall-resistant up to a height of 91 cm
  • Vibration and shock resistant
    for vehicle docking
  • 14" HD active matrix LCD
    (1366 x 768 pixel resolution)
→ request configuration*
* non-binding inquiry for your project

TOUGHBOOK
55 Full HD Touch

Version with 14" Full HD display and touchscreen
  • Intel® Core™ i5-1145G7 vPro™ processor
  • Windows 10 Pro
  • Lightweight, sleek design
    (approx. 2.13 kg and 32.8 mm)
  • 8 GB RAM (max. 64 GB)
  • 512 GB SSD (max. 1 TB)
  • Standard with 2x USB 3.2,
    1x Thunderbolt 4, 1x HDMI,
    1x LAN and Micro SDCX
  • Expansion slot at the front
    and back
  • TOUGHBOOK universal bay
  • Long battery life of up to 18 hours
    (MobileMark 2014)
  • Special global positioning and
    4G LTE eSIM capable optional
  • Operation at -29 °C to +60 °C
  • Robust magnesium housing in
    honeycomb construction with
    carrying handle
  • Penetration protection against
    water and dust according to
    protection class IP53
  • Fall-resistant up to a height of 91 cm
  • Vibration and shock resistant
    for vehicle docking
  • 14" Full HD active matrix LCD
    with capacitive touch screen
    (1920 x 1080 pixel resolution,
    brightness 1,000 cd/m2)
→ request configuration*
* non-binding inquiry for your project
Pro Option

TOUGHBOOK
55 Full HD

Version with 14" Full-HD display
  • Intel® Core™ i5-1145G7 vPro™ processor
  • Windows 10 Pro
  • Lightweight, sleek design
    (approx. 2.25 kg and 32.8 mm)
  • 8 GB RAM (max. 64 GB)
  • 512 GB SSD (max. 1 TB)
  • Standard with 2x USB 3.2,
    1x Thunderbolt 4, 1x HDMI,
    1x LAN and Micro SDCX
  • Expansion slot at the front
    and back
  • TOUGHBOOK universal bay
  • Long battery life of up to 18 hours
    (MobileMark 2014)
  • Special global positioning and
    4G LTE eSIM capable optional
  • Operation at -29 °C to +60 °C
  • Robust magnesium housing in
    honeycomb construction with
    carrying handle
  • Penetration protection against
    water and dust according to
    protection class IP53
  • Fall-resistant up to a height of 91 cm
  • Vibration and shock resistant
    for vehicle docking
  • 14" Full-HD active matrix LCD
    (1920 x 1080 pixel resolution,
    brightness 1,000 cd/m2)
→ request configuration*
* non-binding inquiry for your project
